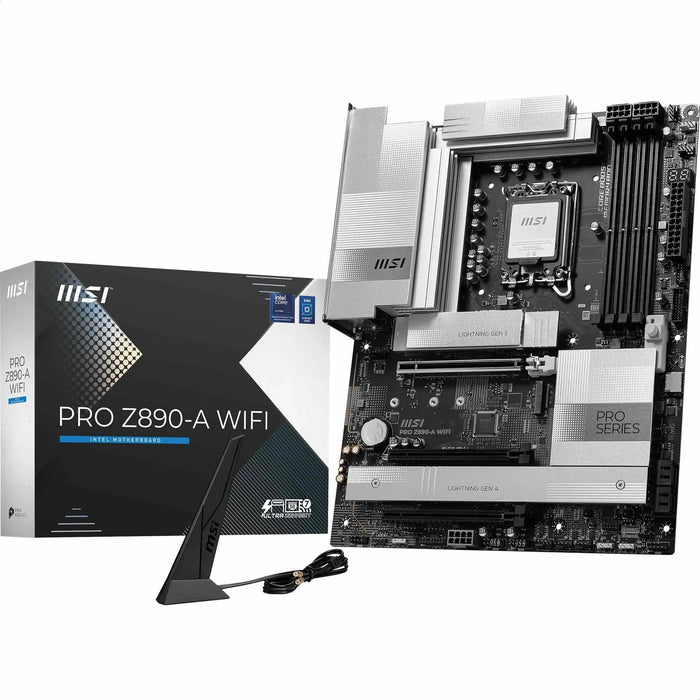

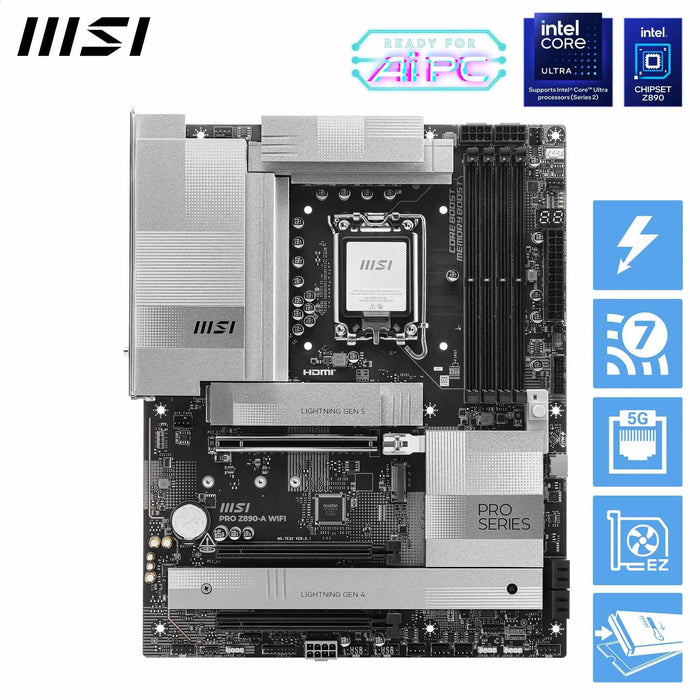

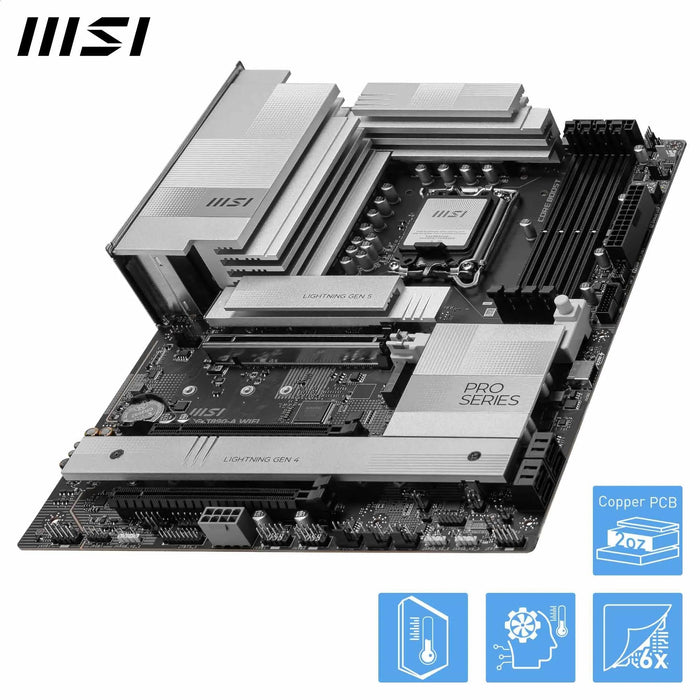

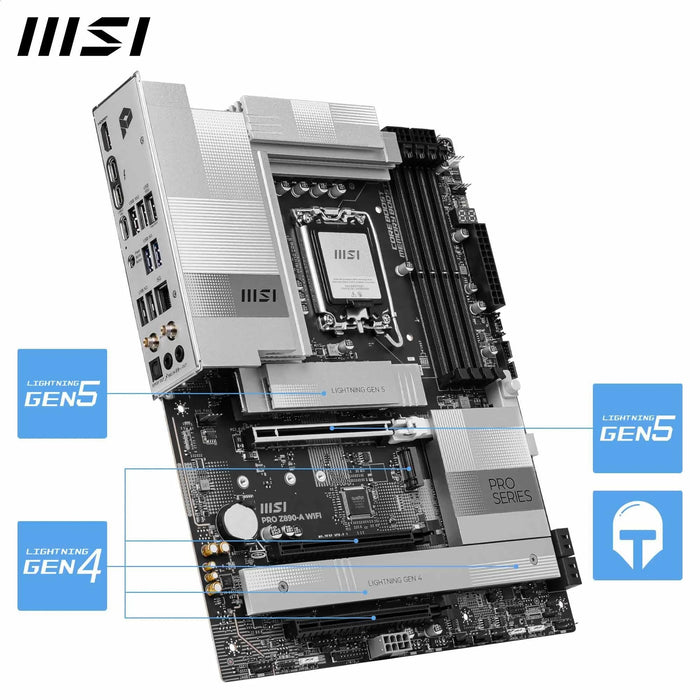

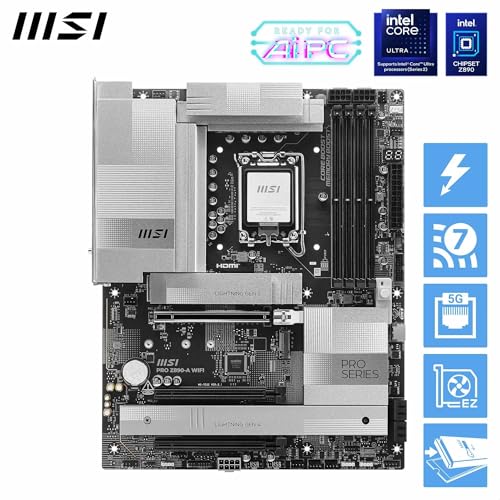

MSI PRO Z890-A WIFI ATX LGA 1851 Motherboard

The MSI PRO Z890-A WIFI is an ATX motherboard built around the Intel Z890 chipset and LGA 1851 (Socket V1), supporting Intel Core Ultra (Series 2) processors. It combines DDR5 memory support, PCIe 5.0 expansion, Wi-Fi 7 and 5 Gigabit Ethernet for productivity, gaming and AI-focused builds.

Key Features

• Intel Z890 platform: LGA 1851 socket for Intel Core Ultra (Series 2) processors, with a 16+1+1+1 DRPS power design, 90A Smart Power Stage and dual power connectors.
• DDR5 memory: Four DIMM slots, dual-channel support, up to 256 GB capacity and memory speeds up to 9200 MHz.
• Expansion and storage: PCIe 5.0 x16, PCIe 4.0 x16 and PCIe 4.0 x4 slots, plus four M.2 slots, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, four SATA III connectors and RAID 0/1/5/10 support.
• Networking: Wi-Fi 7 (802.11be) with EZ Antenna, 5 Gigabit Ethernet (5G LAN) and Bluetooth 5.4.
• Connectivity: Thunderbolt 4, HDMI 2.1, DisplayPort 1.4 and 7.1-channel Realtek ALC897 audio.

I/O & Connectivity

• Rear USB: 4 x USB 3.2 Gen 1 Type-A, 3 x USB 3.2 Gen 2 Type-A and 1 x USB 3.2 Gen 2 Type-C.
• Internal USB: 4 x USB 2.0, 2 x USB 3.2 Gen 1 and 1 x USB 3.2 Gen 2 connectors.
• Display outputs: 1 x HDMI 2.1 and 1 x DisplayPort 1.4, with 1 x Thunderbolt port.
• Audio: Realtek ALC897 codec with 7.1-channel output.

Build Notes

• Form factor: ATX; dimensions 243.8 mm wide and 304.8 mm deep.
• Power and control: 24-pin main power, 8-pin EPS, CPU fan connector and TPM connector.
• Operating system: Windows supported.
• Warranty: 3 year manufacturer warranty.
