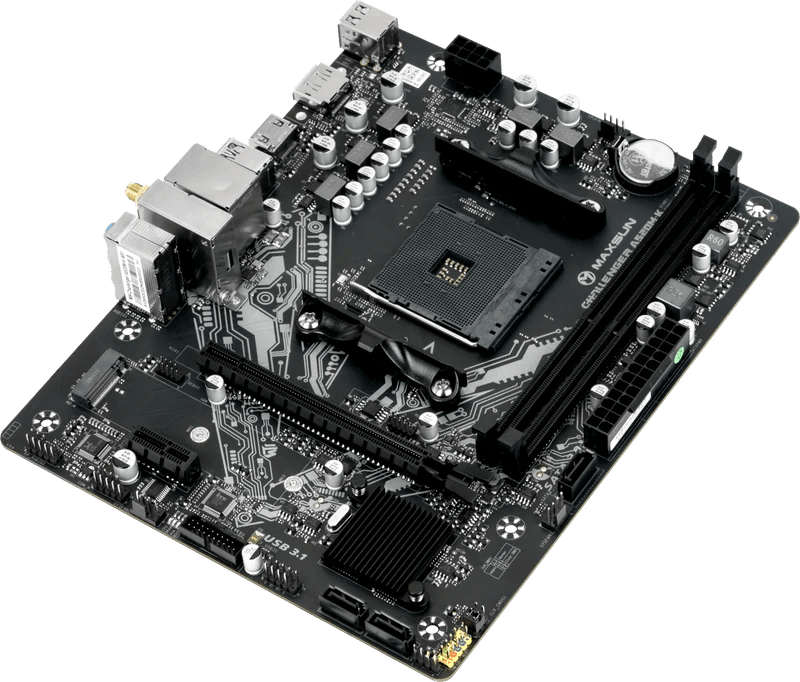

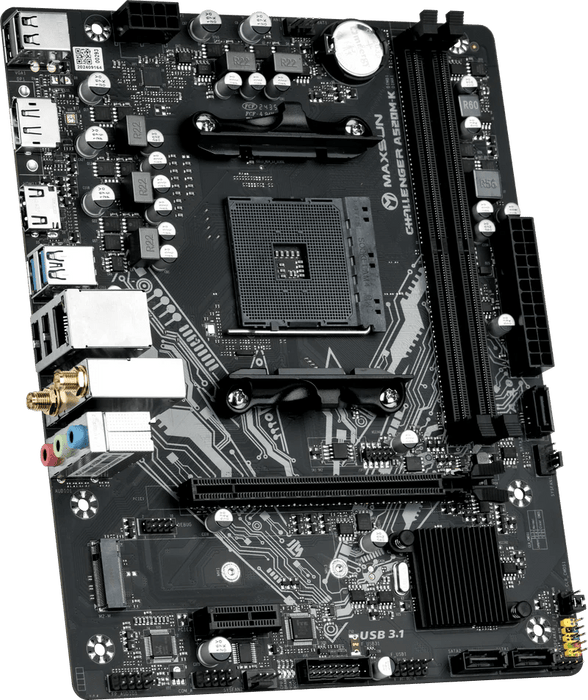

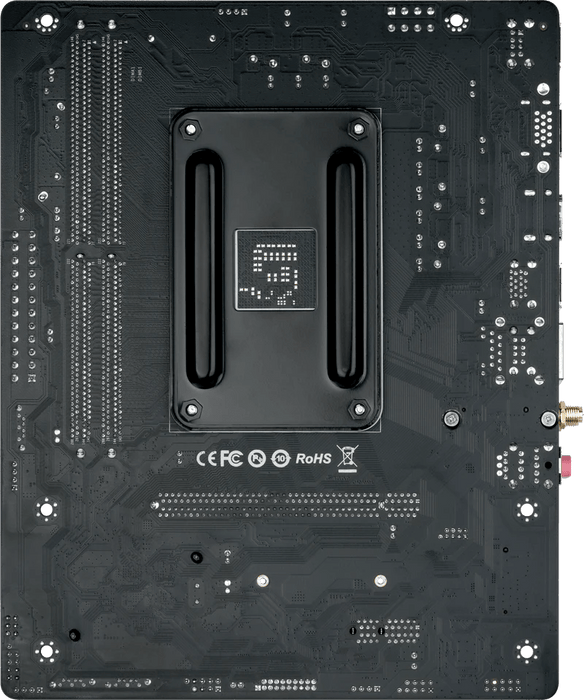

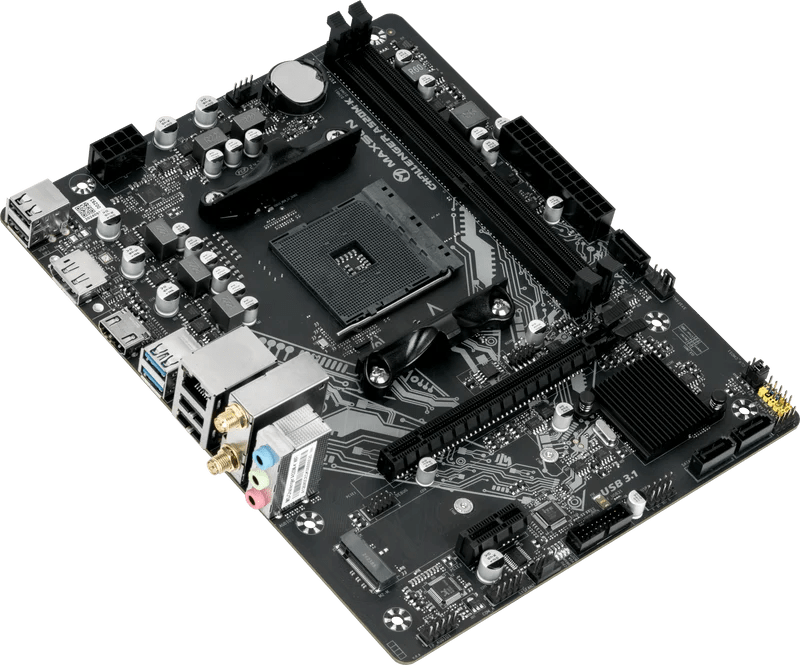

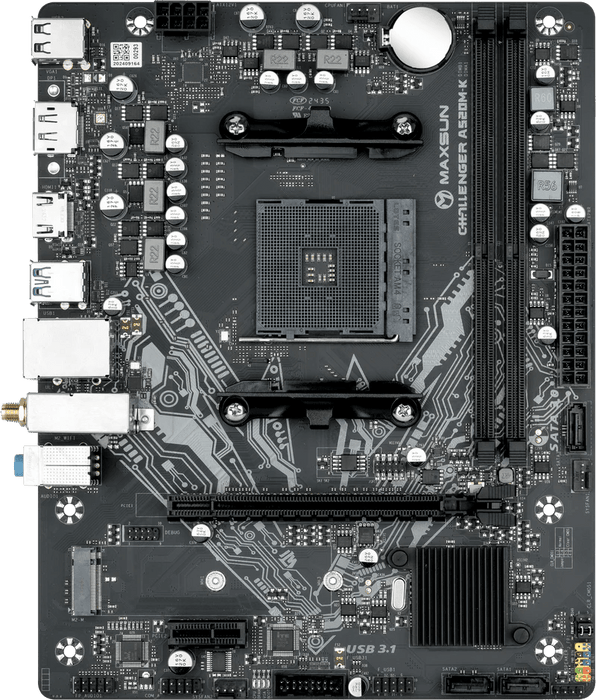

Maxsun A520M-K WIFI Challenger Micro ATX AM4 Motherboard
Maxsun

Maxsun A520M-K WIFI Challenger Micro ATX AM4 Motherboard

SKU: MS-CHALLENGER A520M-K WIFI
Availability:
in stock
In stock
€72,95
€72,95 - €72,95
€72,95 - €72,95
€72,95
Inc VAT
Delivery Truck
Free Standard Delivery or £5 Off Royal Mail and Parcelforce Delivery Available on UK Orders Over £75 - Excludes Large Items and PCs Read More
TrustScore: 4.8 / 5
★★★★★
See Our Reviews on Trustpilot

MAXSUN MS-CHALLENGER A520M-K WIFI

Micro-ATX AMD A520 Motherboard with Wi-Fi & Bluetooth

The MAXSUN MS-CHALLENGER A520M-K WIFI is a compact yet feature-rich Micro-ATX motherboard built on the AMD A520 chipset. Designed for budget-conscious users seeking reliable performance, it supports AMD Ryzen 5000, 5000 G-Series, and 4000 Series processors on the AM4 socket.

Featuring dual DDR4 memory slots with support for up to 64GB at 3200MHz (OC), M.2 NVMe storage, integrated Wi-Fi, and comprehensive connectivity options, this board is perfect for home offices, media centres, or entry-level gaming builds.

Key Features

  • AMD A520 Chipset - Reliable foundation for AM4 processors
  • AMD Socket AM4 - Supports Ryzen 5000, 5000 G-Series, 4000 Series
  • DDR4 up to 3200MHz - 2x DIMM slots, max 64GB with A-XMP support
  • M.2 NVMe Support - PCIe 4.0 x4 M.2 slot for fast storage
  • Wi-Fi & Bluetooth - RTL8821CE wireless module included
  • Dual Display Outputs - HDMI (4K@30Hz) + VGA for flexible graphics
  • RAID Support - RAID 0, 1, 5, 10 for SATA storage
  • 5.1 Channel Audio - Realtek ALC897 HD audio
  • Compact mATX - 220mm x 180mm form factor

At a Glance

Chipset AMD A520
Form Factor Micro-ATX
Memory Slots 2 x DDR4 (max 64GB)
Storage 1x M.2 + 3x SATA
LAN 1G (RTL8111H)
Warranty 2 Years

Processor

CPU Socket AMD Socket AM4
Chipset AMD A520
Supported CPU Series AMD Ryzen 5000, 5000 G-Series, 4000 Series

Memory

Memory Slots 2x DDR4 DIMM
Maximum Memory 64 GB
Memory Support DDR4 3200(OC)/2933(OC)/2666(OC)/2400(OC) MHz
Channel Mode Dual-channel
AMD A-XMP Supported

Graphics & Video

Onboard Graphics Integrated (depends on CPU)
HDMI Output 1x (up to 4K@30Hz)
VGA Output 1x (up to 2048x1536@50Hz)

Expansion Slots

PCIe x16 Slot 1x PCIe 3.0 x16
PCIe x1 Slot 1x PCIe 3.0 x1

Storage

M.2 Slot 1x Key M (2242/2280, PCIe 4.0 x4)
SATA Ports 3x SATA 6Gb/s
RAID Support RAID 0, 1, 5, 10 (SATA)

Network

LAN Realtek RTL8111H (1G)
Wi-Fi Realtek RTL8821CE (802.11ac)
Bluetooth BT 4.2

Audio

Audio Codec Realtek ALC897
Audio Channels 5.1-channel HD Audio

USB Ports

Rear USB 3.2 Gen1 2x Type-A
Rear USB 2.0 4x Type-A
Front USB 3.2 Gen1 2x
Front USB 2.0 2x

Internal I/O

ATX Power Connector 1x 24-pin
CPU Power Connector 1x 8-pin
CPU Fan Header 1
System Fan Header 1
Front Audio Header 1
COM Port 1
CLR CMOS 1
Speaker Header 1

Power & Build

VRM Design 3+2 Phase
Form Factor Micro-ATX (220mm x 180mm)
Debug LED None
OS Support Windows 11 64-bit

Warranty

Warranty Period 2 years
