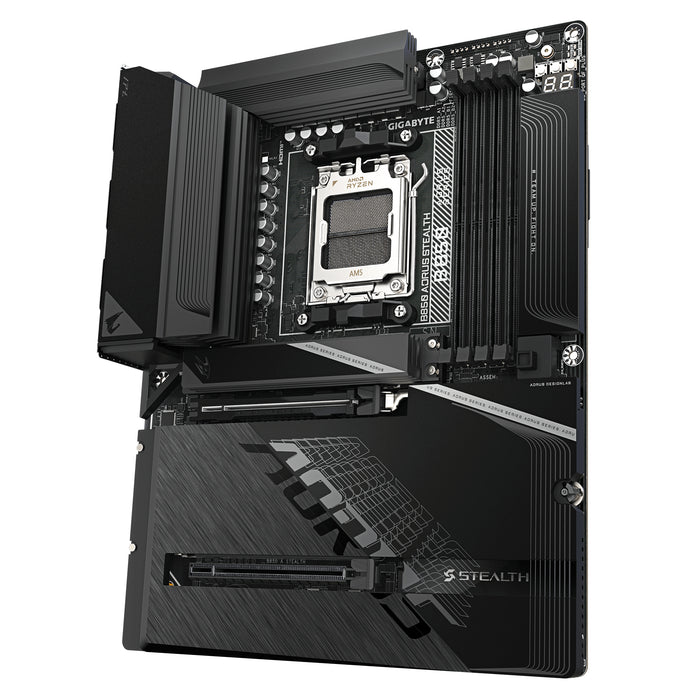

Gigabyte AORUS B850 STEALTH WIFI7 ATX AM5 Motherboard

Gigabyte AORUS B850 STEALTH WIFI7 ATX AM5 Motherboard

SKU: B850 AORUS STEALTH
Availability:
Out of stock
Out of Stock
€332,95
€332,95 - €332,95
€332,95 - €332,95
€332,95
Inc VAT
Delivery Truck
Free Standard Delivery or £5 Off Royal Mail and Parcelforce Delivery Available on UK Orders Over £75 - Excludes Large Items and PCs Read More
TrustScore: 4.8 / 5
★★★★★
See Our Reviews on Trustpilot

The GIGABYTE B850 AORUS STEALTH is an ATX motherboard built on the AMD B850 chipset. It is designed to support AMD Ryzen 9000, 8000, and 7000 series processors, providing a solid foundation for gaming, content creation, and productivity builds.

Key Features

  • Power Delivery: Digital twin 14+2+2 phases VRM for stable power to the CPU.
  • Memory: 4x DDR5 DIMM slots supporting speeds up to 8200MHz (OC) and a maximum capacity of 256GB. Includes AMD EXPO™ and XMP profile support.
  • Storage: 4x M.2 slots (2x PCIe 5.0, 2x PCIe 4.0) for ultra-fast NVMe storage, with a patented M.2 EZ-Flex heatsink design.
  • Networking: 5GbE wired LAN and Wi-Fi 7 wireless with a directional ultra-high gain antenna.
  • Convenience: Features like EZ-Latch Plus for tool-less PCIe and M.2 installation, WIFI EZ-Plug, and a pre-installed I/O shield simplify the build process.

Storage & Connectivity

  • High-speed connectivity via USB 3.2 Gen 2 (Type-A and Type-C ports) on the rear panel.
  • Extensive internal I/O including a USB 3.2 Gen 2x2 internal header, multiple fan headers, and RGB headers.
  • Onboard graphics via an HDMI port (up to 4K@60Hz) and Realtek® ALC1220 audio codec for high-definition sound.

Core Specifications

ChipsetAMD B850
Processor SocketAMD Socket AM5
Form FactorATX (30.5cm x 24.4cm)
VRM Phases14+2+2 Digital Twin
BIOSUEFI AMI
Warranty3 Years

Memory

Memory TypeDDR5
Memory Slots4x DDR5 DIMM
Max Memory Speed8200 MHz (OC)
Max Memory Capacity256 GB
Memory FeaturesDual Channel, Non-ECC Un-buffered, AMD EXPO™ & XMP Support

Storage

M.2 Slots4x M.2 (2x PCIe 5.0, 2x PCIe 4.0)
SATA Ports2x SATA 6Gb/s
RAID SupportNVMe: 0, 1, 5*, 10; SATA: 0, 1 (*RAID 5 with Ryzen 9000)

Connectivity

Wi-FiWi-Fi 7 (802.11be), 2.4/5/6GHz
Bluetooth5.4
EthernetRealtek 5GbE LAN (5/2.5/1/0.1 Gbps)
Rear USB Ports1x USB-C (3.2 Gen 2), 2x USB-A (3.2 Gen 2), 4x USB-A (3.2 Gen 1), 4x USB-A (2.0)
Internal USB Headers1x USB-C (3.2 Gen 2x2), 1x USB 3.2 Gen 1, 2x USB 2.0
Video Output1x HDMI (4K@60Hz)
AudioRealtek® ALC1220, 7.1-Channel, S/PDIF Out

Physical

Weight3.6 kg
Included SoftwareNorton® Internet Security (OEM), Gigabyte Control Center
